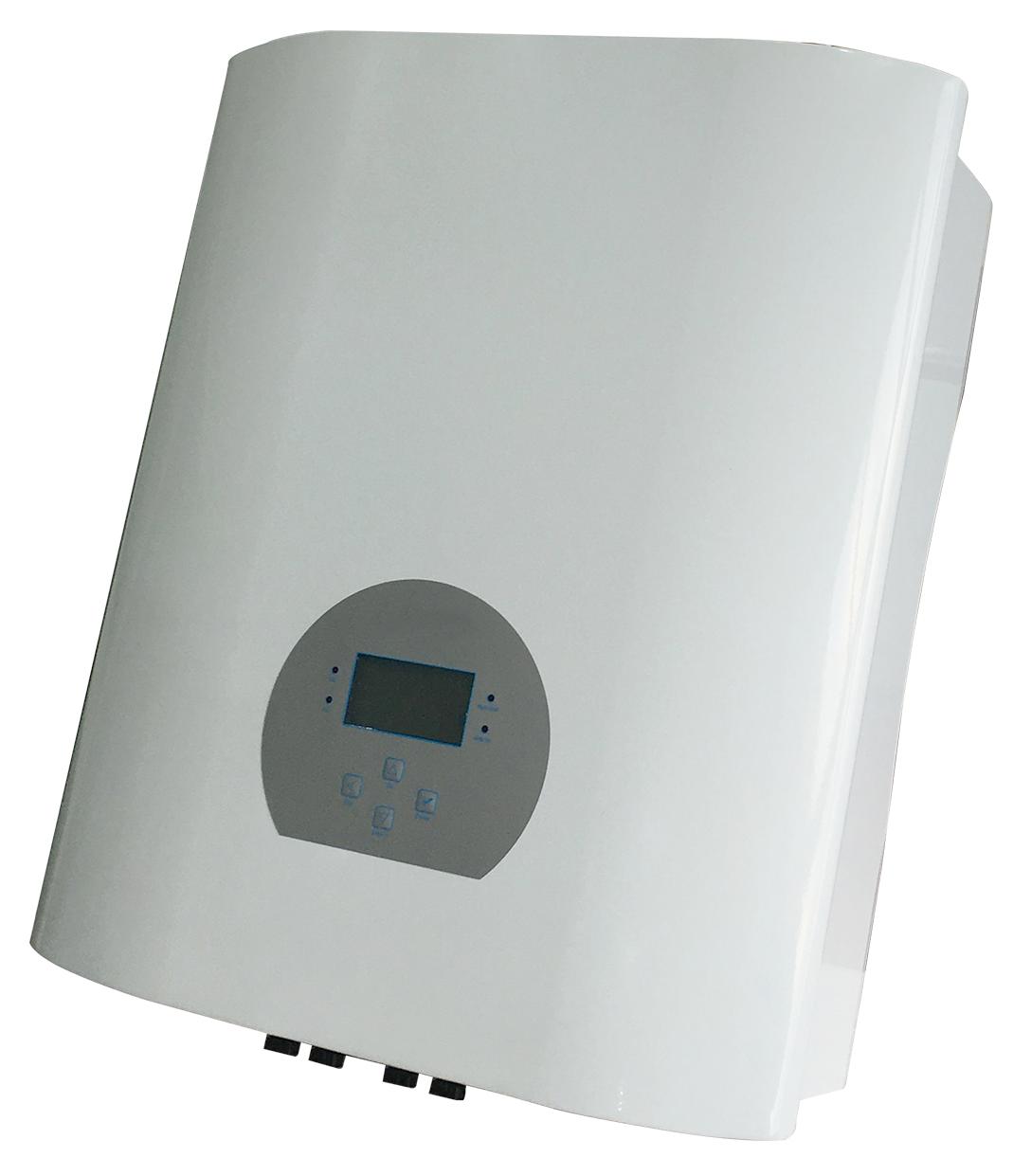

5KW Solar Grid Tie Inverter

  • Number:TEG-5KW
  • Specif:5000W
  • Size:385*453*164mm
  • Category:Solar Grid Tie Inverter
  • Gotline:18930085899
  • Details

  • Contact

Features:

●  Over 97.8% Max.efficiency
●  Ultra Wide Input Voltage Range,Dual MPPT Design With Precise MPPT algorithm
●  IP65,Visually Pleasing For All Environment Conditions
●  RS485,WIFI/GPRS(optional) Interface ,WIFI and Monitoring app available
●  Numerous protection functions,compact and light design for one-person easy installation
●  5 Yeas standard warranty, 10 Years optional upgrade


Model NO:\TEG-

3.5KW

5KW

10KW

15KW

Max.input power

3.9KW

5.5KW

11.6KW

15.3KW

Max.input voltage

600V

1000V

Start-up input voltage

120V

250V

MPPT voltage range

100-550V

200-800V

Max.input current

11A

10A+10A

17A+17A

Rated grid voltage

220V (Single)

380V (Three phase)

Grid voltage range

180-270V(adjustable)

313-470V(adjustable)

Rated grid frequency

50 / 60Hz

Power factor

>0.99

Max.efficiency

97.3%

97.5%

98.2%

98.3%

Ingress protection

IP65

Topology

transformerless

DC reverse-polarity protection

Yes

Short circuit protection

Yes

Islanding Protection

Yes

Grid monitoring

Yes

Overall dimension (mm)

385W*453H*164D

455W*550H*240D

Net weight

10Kg

12.5Kg

30Kg

30Kg


Order:5KW Solar Grid Tie Inverter
