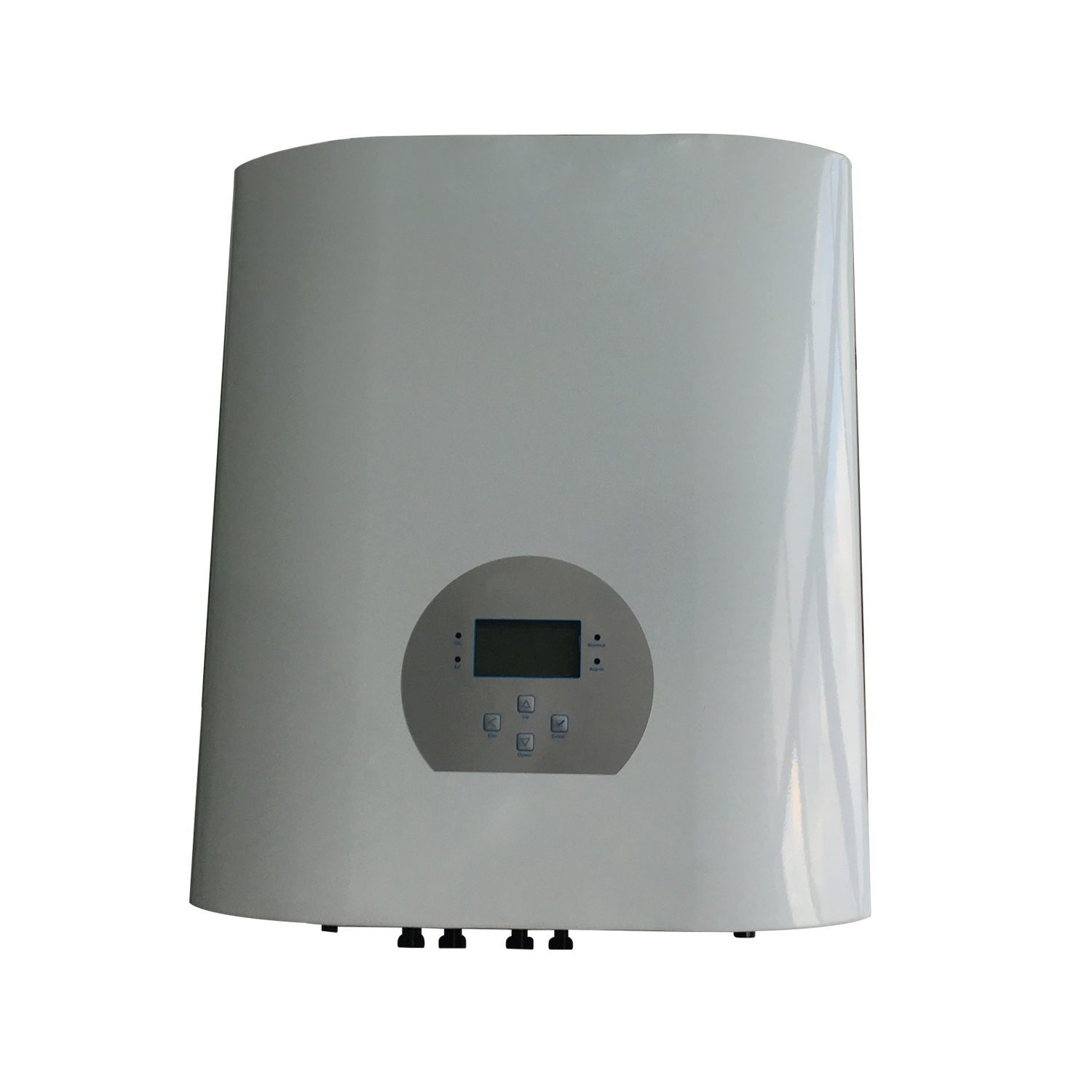

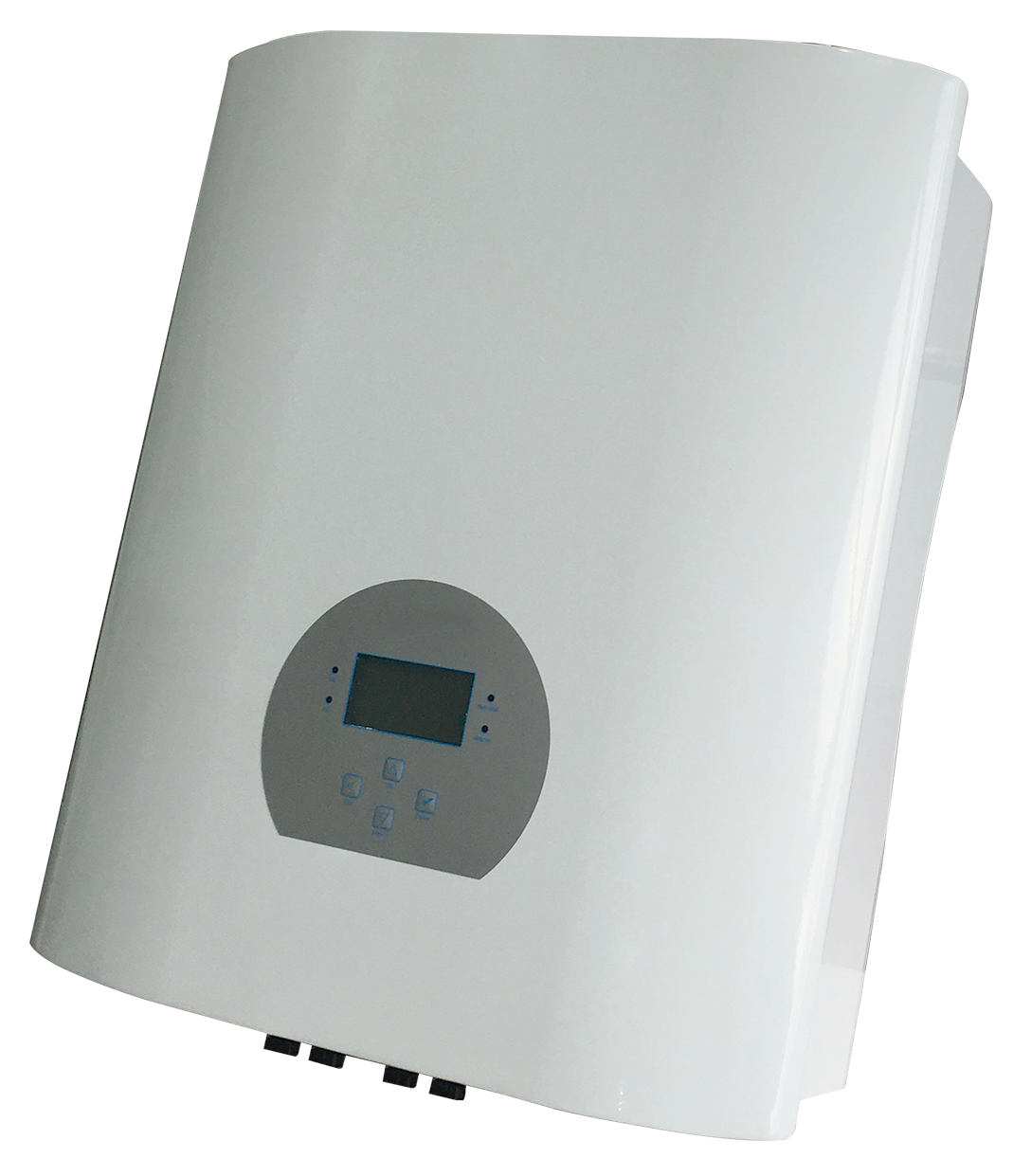

3.5KW Solar PV Inverter
- Number：TEG-3.5KW
- Specif：3500W
- Size：385*453*164mm
- Category：Solar Grid Tie Inverter
- Gotline：18930085899
-
-
Details
-
Contact
|
Model NO:\TEG- |
3.5KW |
5KW |
10KW |
15KW |
|
Max.input power |
3.9KW |
5.5KW |
11.6KW |
15.3KW |
|
Max.input voltage |
600V |
1000V |
||
|
Start-up input voltage |
120V |
250V |
||
|
MPPT voltage range |
100-550V |
200-800V |
||
|
Max.input current |
11A |
10A+10A |
17A+17A |
|
|
Rated grid voltage |
220V (Single) |
380V (Three phase) |
||
|
Grid voltage range |
180-270V(adjustable) |
313-470V(adjustable) |
||
|
Rated grid frequency |
50 / 60Hz |
|||
|
Power factor |
>0.99 |
|||
|
Max.efficiency |
97.3% |
97.5% |
98.2% |
98.3% |
|
Ingress protection |
IP65 |
|||
|
Topology |
transformerless |
|||
|
DC reverse-polarity protection |
Yes |
|||
|
Short circuit protection |
Yes |
|||
|
Islanding Protection |
Yes |
|||
|
Grid monitoring |
Yes |
|||
|
Overall dimension (mm) |
385W*453H*164D |
455W*550H*240D |
||
|
Net weight |
10Kg |
12.5Kg |
30Kg |
30Kg |
Order：3.5KW Solar PV Inverter
