VS-AU series grand launch

Source:未知 Sentiment:Published time:2018-09-19

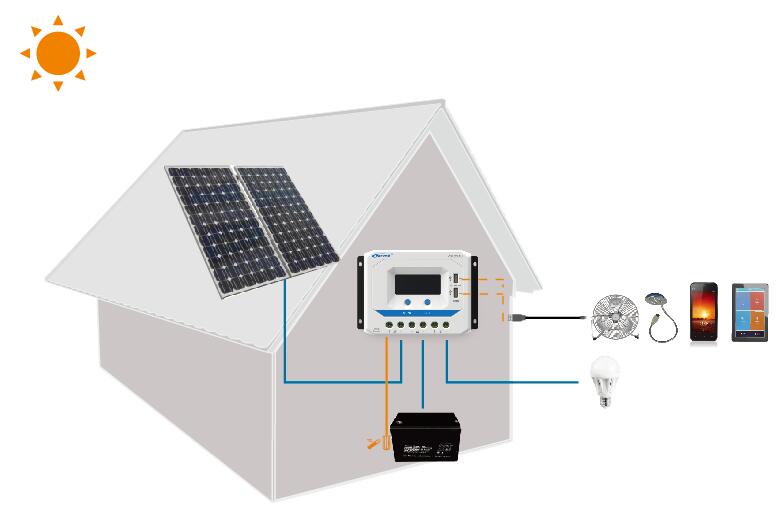

The VS-AU controller is a common positive PWM charge controller with built in LCDdisplay and USB
port.The multiple load control modes enable it can be  widely  used on  solar  home  system,  traffic
signal, solarstreet light, solar garden lamp, etc.

Models:
• VS1024AU,   10A,  12/24V auto work
• VS2024AU,   20A,  12/24V auto work
• VS3024AU,   30A,  12/24V auto work
• VS4524AU,   45A,  12/24V auto work
• VS6024AU,   60A,  12/24V auto work
• VS3048AU,   30A,  12/24/36/48V auto work
• VS4548AU,   45A,  12/24/36/48V auto work
• VS6048AU,   60A,  12/24/36/48V auto work

Features:
• PWM charging
• Battery type selectable: Sealed, Gel, and Flooded
• Informative black lightLCD display
• Double USB design,  Max. output 2.4A
• Multiple load control modes
• Energy statistics function
• Full power working at temperature range from  -25 to 55℃
• Adopt high quality,high reliability  components of ST,IR and Infineon
• UL and VDE certified Nickel plated copper terminals, to ensure safe and solid connection
• Battery temperature compensation function
• Extensive Electronic protection

Extensive electronic protections:
•  PV reverse polarity protection                                                      •  Battery reverse polarity protection
•  Battery over voltage protection                                                    •  Battery over discharge protection
•  Battery overheating protection                                                     •  Controller overheating protection
•  Load short circuit protection                                                        •  Load overload protection
