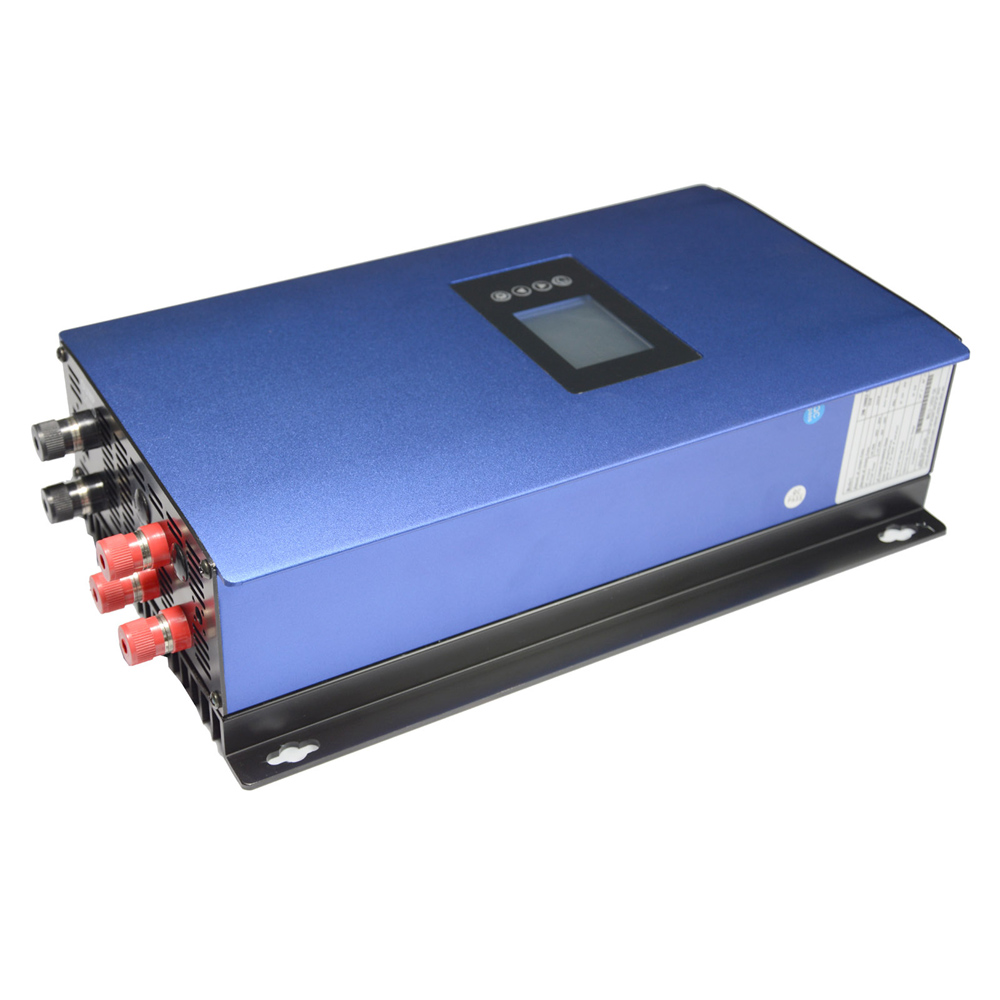

2000W Wind Grid Tie Inverter

You only need a phone we will provide the most suitable products

Tel phone：

18930085899

QQ：1322109666

Phone：18930085899

Adress：SHANGHAI CHINA

< >

Features：

● Easy installation, this inverter can be paralleled on AC side

● This inverter Can be integrated with internal limit function

● Battery discharge power mode enabled, which can auto regulate depth of discharge ofthe battery bank

● Zigbee wireless communication extended interface, enable inverter power production data collect by energy collect device(ECD)

● Nice LCD display various parameters including input voltage, output power,temperature,power curve,output sine waveform etc

Model NO:\TEG-	1000G-WAL	1000G-WDL	2000G-WAL	2000G-WDL
Normal AC Output Power	950W		1900W
Maximum AC Output Power	1000W		2000W
3 phase AC Voltage Range(Input)	22V-65V / 45V-90V	-	45V-90V	-
DC Voltage Range (Input)	-	22V-65V / 45V-90V	-	45V-90V
Output Current Waveform	Pure Sine Wave
Power Factor	＞0.95
Output AC Voltage Range	95V~140V / 185V~265V(Auto Detect)		185V~265V
Frequency	46~65Hz
Anti-island Protection	Yes
Over Current Protection	Yes
Reverse Polarity Protection	Fuse
Dispaly	LCD
Standby Power	1.2W	1.2W	1.5W	1.5W
Working temperature	-20℃~ +50℃
Overall dimension(mm)	350×196×88	350×196×88	460×196×88	460×196×88
Net weight	5.1kg	4.9kg	7.5kg	7.3kg

Order：2000W Wind Grid Tie Inverter

Focusing on green energy for a better tomorrow
